Upcoming work profile support for Googlebook first look

In my week with the Googlebook I had a go at enrolling a work profile (technically the 2nd time after trying the demo units at the enterprise summit, but I digress..), and while debugging the persistent failures upon initiating enrolment, the logs kept shouting about device management feature flags being declared unsupported. My hope was that was a flag to disable it intentionally, rather than support being genuinely impossible before H2 2027.

And today I have something of an answer..

I made the choice to try this dabbling in a VM. As tempting as ripping open a new Dell XPS Googlebook would be, the RMA process probably wouldn't cover returns because I software-bricked it. Besides, I've got a mac mini just hankering for something to do.

With that established, it was on to the research and prep. Google publishes recovery images for each current model, much as it does for Pixels. Given Google have been clear about owning the Googlebook update process this is expected, and works in my favour because scouring OEM support sites for recovery images can be a huge pain.

The one I went for was mica, the Dell XPS Googlebook's recovery, although HP's would have likely been fine as well given all that mattered was it was an ARM build so it'd play nicely with my Mac.

I left the Dell XPS within viewing distance of the Mac for this, to give it a heads-up on what may be coming its way..

With the Google-hosted recovery image, the next task was to figure out how to get it to boot with QEMU.

All credit for that goes to skylartaylor's gbos-vm. It runs the recovery image in a GPU-accelerated QEMU VM on Apple Silicon. It rebuilds the vendor partition for the virtual device, borrows a software keystore and boot HAL from a Cuttlefish donor, boots the stock system partition more or less as shipped, and turns off verified boot so boot isn't blocked by Android's verified boot system.

With that in place, within a few minutes I was sat at a working Googlebook desktop. The VM booted sweet as a nut!

Google have been immensely clear about enterprise management features being omitted for the next year, so trying to enrol was really not expected to work. What I found more interesting was why enrolment failed and how management had been removed from what is otherwise a standard android build on a new form factor.

During attempts, I was seeing entries in the bug report along the lines of:

DevicePolicyManager: Cannot check provisioning for action android.app.action.PROVISION_MANAGED_PROFILE because device does not have the android.software.device_admin feature.

With further digging, pm list features doesn't list android.software.device_admin or android.software.managed_users, so anything that wants to set an owner refuses because the device doesn't have the device admin feature.

But it was more than just a missing declaration, Google disables management in more than one place:

• The system declares both features unavailable in a permissions file, and the framework is compiled to report them missing regardless of what that file says.
• Even with the features present, Device Policy's own device-admin gate was folded to a hard false at build time, which short-circuits essentially every management operation - setting an admin, a profile owner, a device owner, the provisioning, all of it.

It was the 2nd gotcha above that caught me out, leading to more sleuthing through the build after I was sure I had it sorted.

What this sleuthing also discovered was much of the management components I look for in a build supporting Android Enterprise were absolutely present. They may not have been fully functional - and spoiler, they're not - but knowing the components existed gave me all I needed to see to move on to trying to enable them!

The requirement was three changes, and a recompile back into the system image:

• Patch the framework so it reports the two features as present,
• Patch Device Policy's gate so it stops reading false by default,
• and flip the permissions file to declare the features available.

None of it is overly complex given it's undoing three deliberate off switches normally on in standard Android builds (those I'm familiar with having built Android for hardware myself in the past). The tricky bit was getting the modified files back into a read-only system partition inside a logical-partition container without breaking everything around them, which took rather more scripting than the patches themselves. Thankfully my team of AI powered assistants know more about compiling than I do, so what would have taken me days of research was done in minutes with a nice how-to created after so I know for next time.

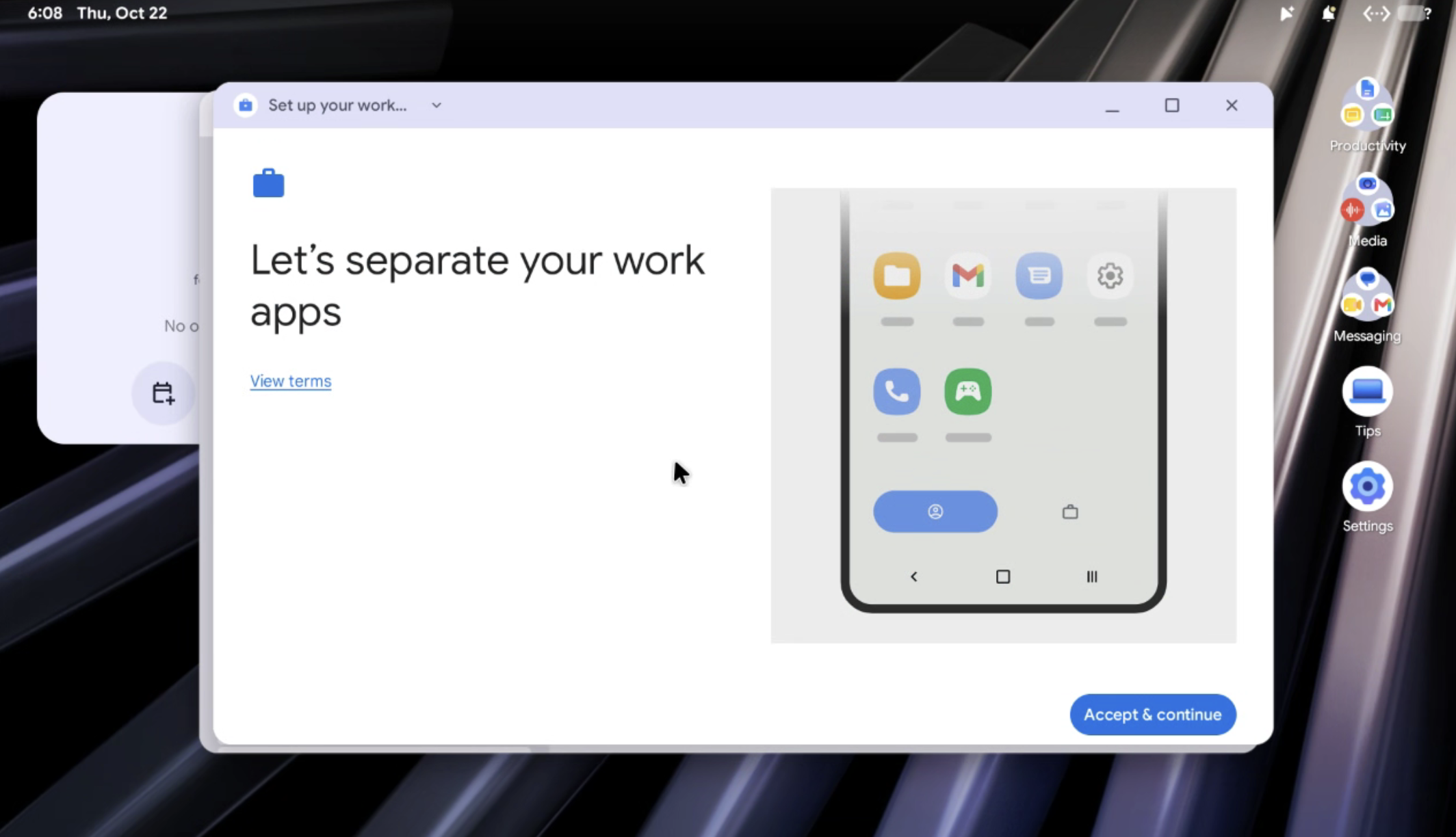

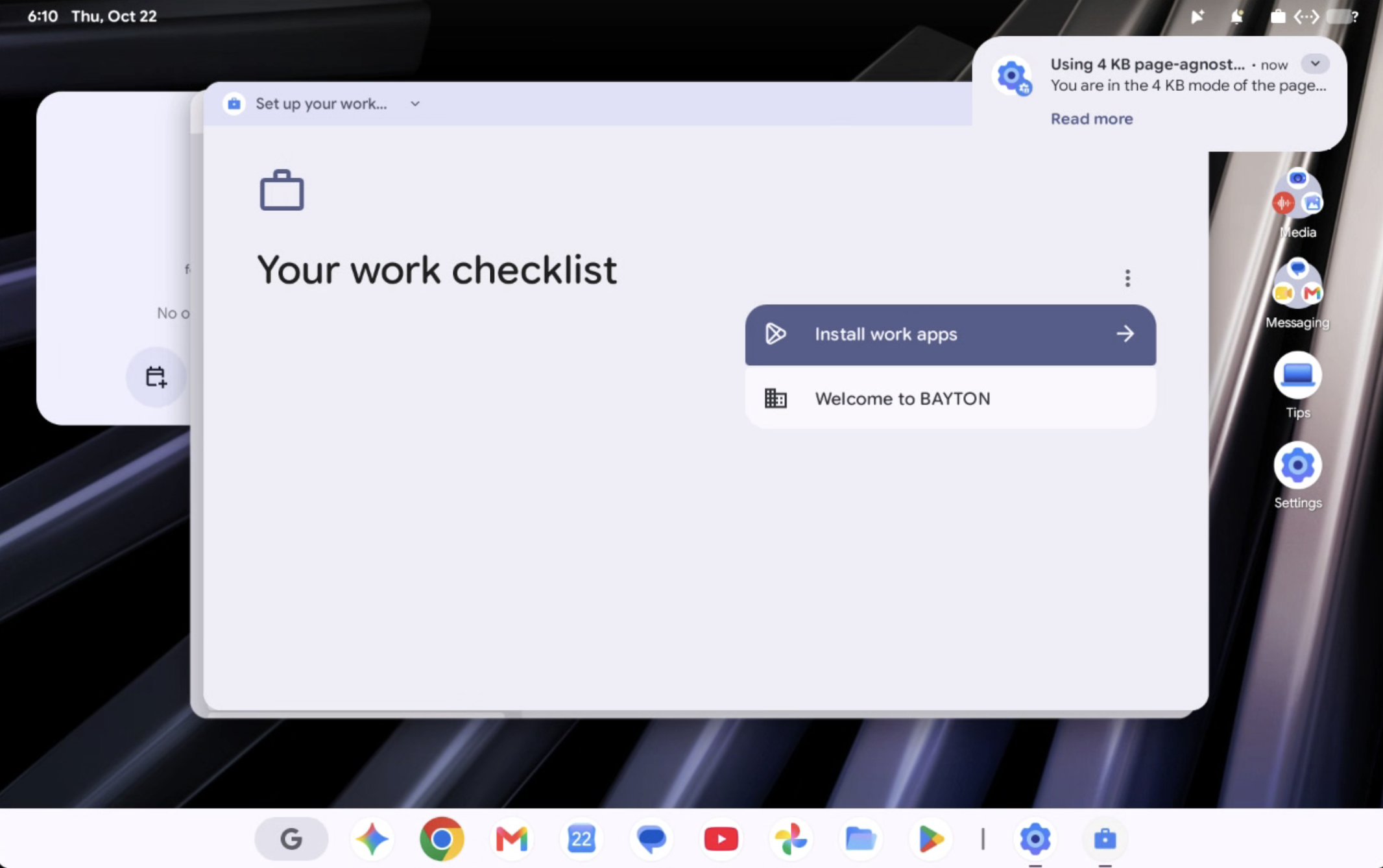

With the flags on and verified through ADB, I ran a bog-standard work profile enrolment on an already set-up device through AMAPI.

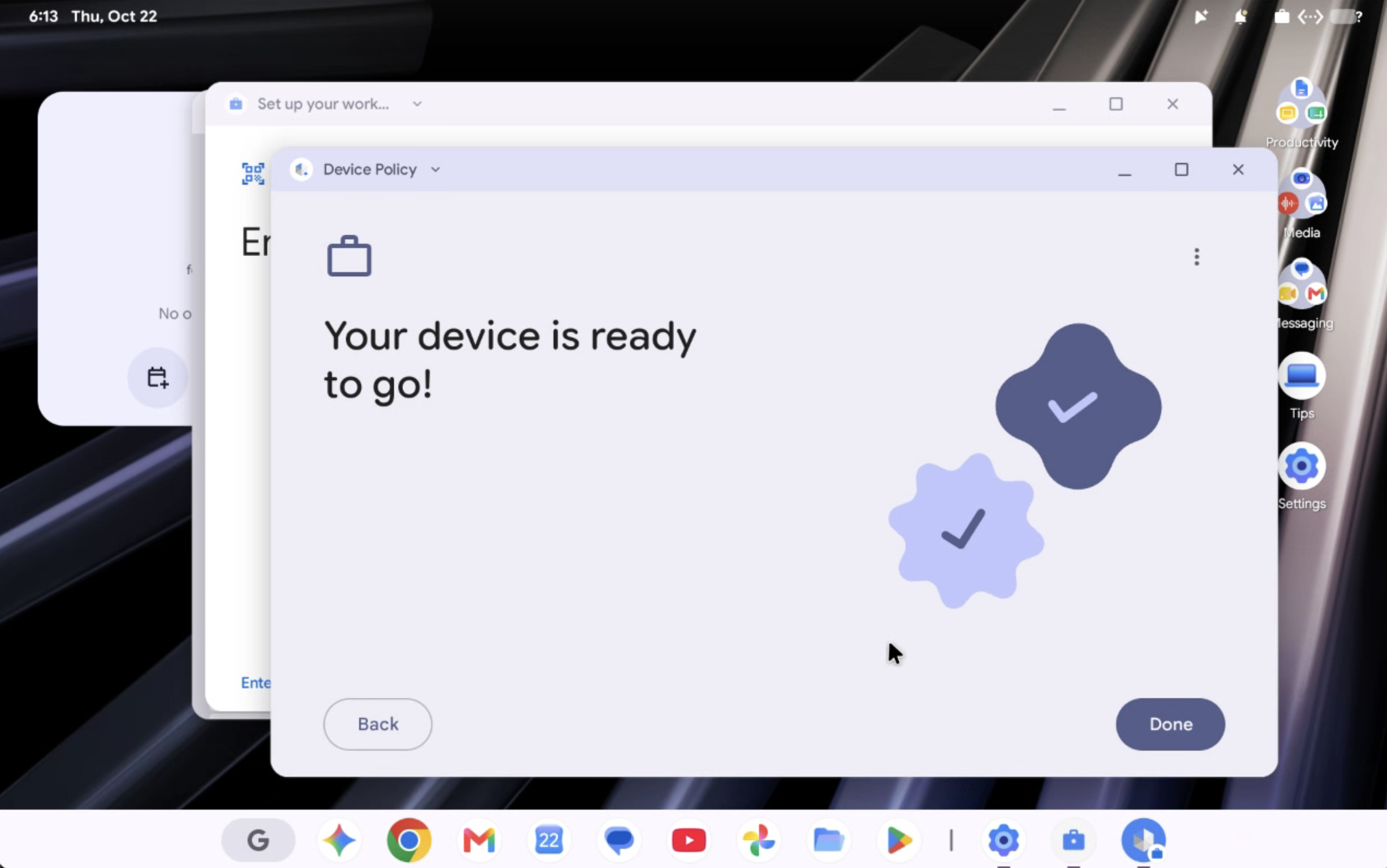

Given the VM doesn't expose a camera I ended up pasting the enrolment token itself rather than scanning a QR. Not long after, I saw it succeeded, with ADP showing profile owner of a work profile:

Profile Owner (User 11): com.google.android.apps.work.clouddpc/...CloudDeviceAdminReceiver
UserInfo{11:Work profile:1030} running   (parent User 10)
EnforcingAdmin { ...clouddpc..., mAuthorities=[enterprise], mUserId=11 }

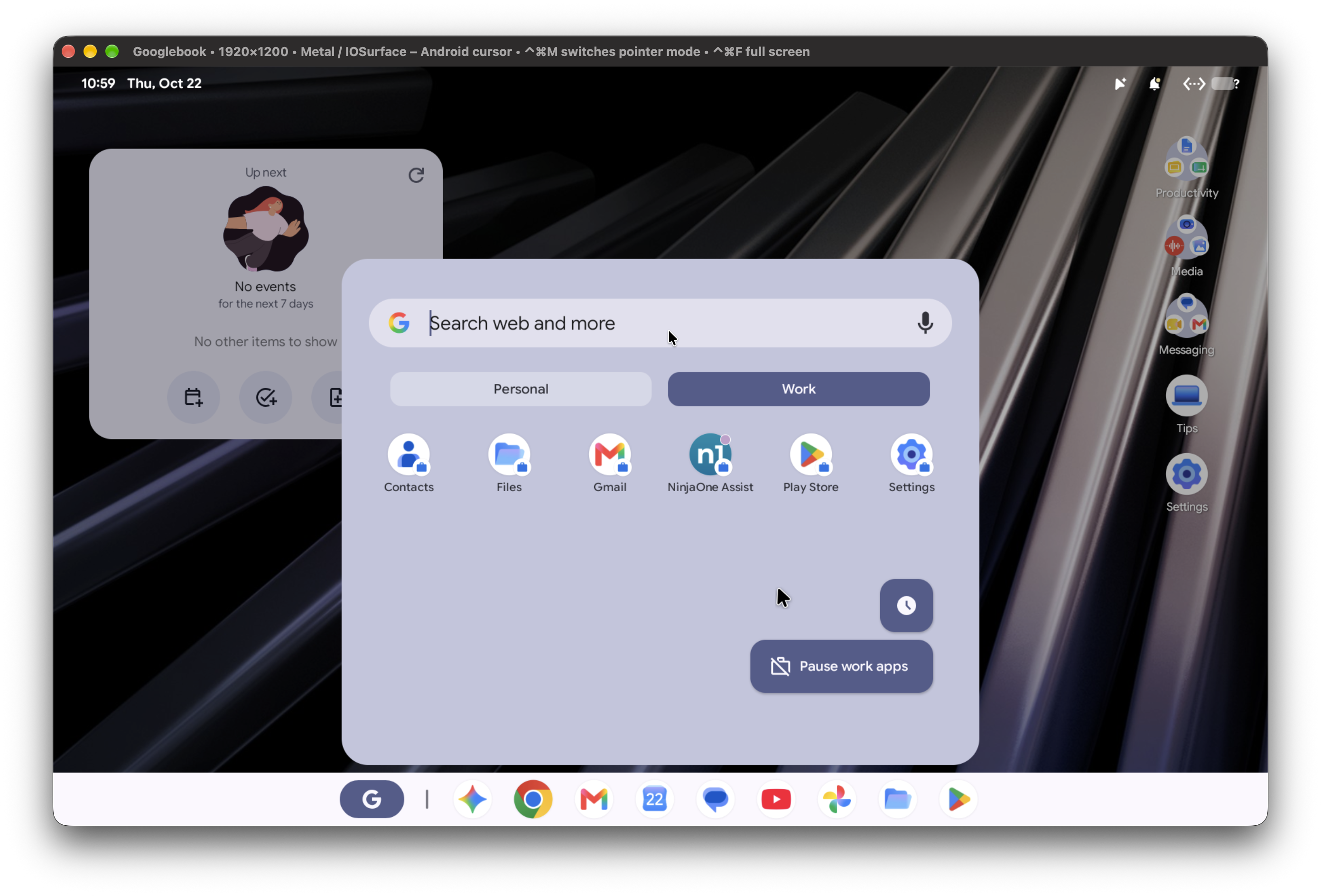

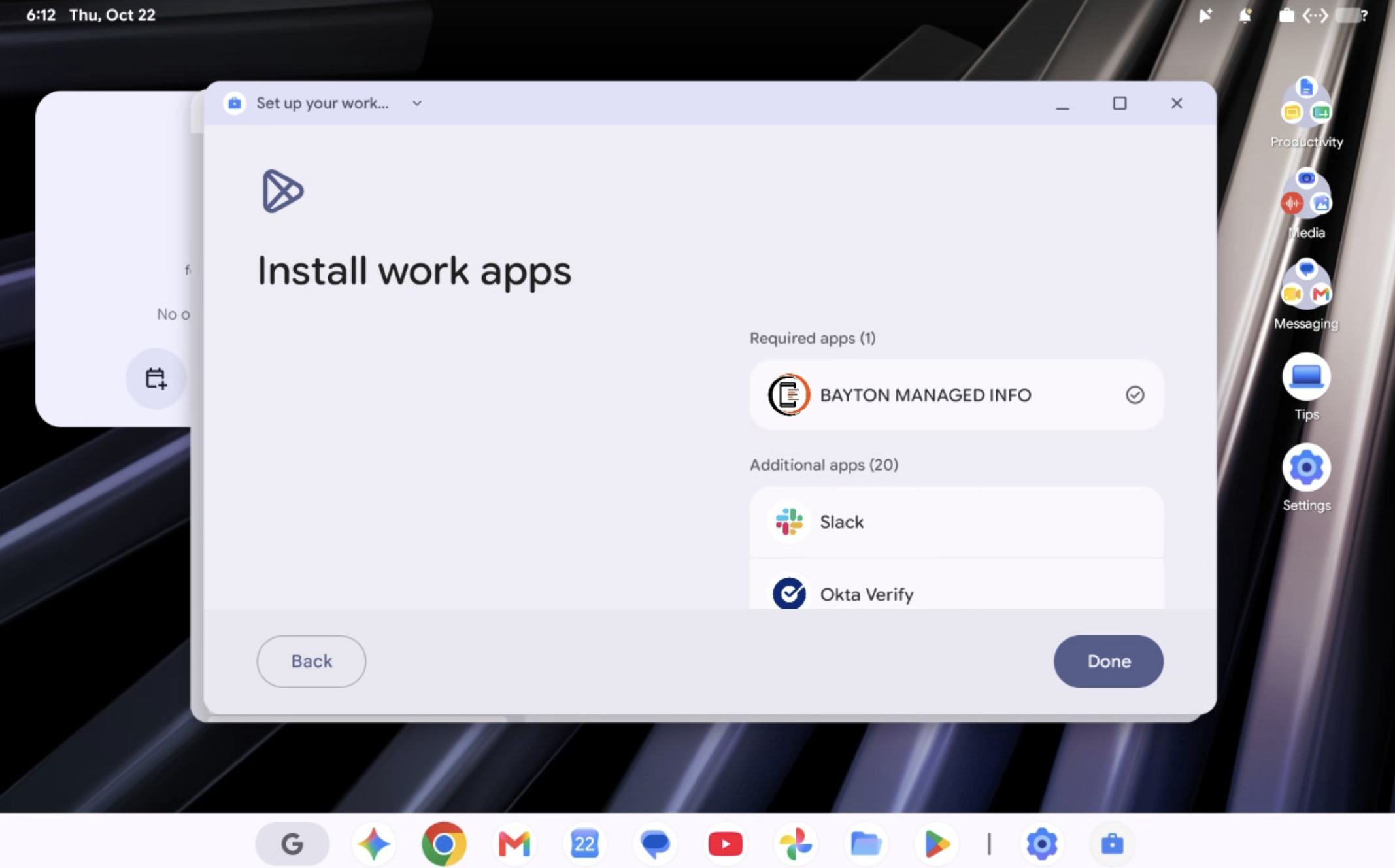

And there we have it. A work profile, sat under the primary user (User 10, in this case, because Googlebook uses headless users similar to Android Automotive!), with Android Device Policy registered as its profile owner. Applications soon came down from managed Google Play, and the previously hidden/non-functional work profile references dotted around the UI now opened to offer access to settings and configuration.

That's a managed work profile on a Googlebook, enrolled through the same process I'd point to for any other Android device.

:)

• Given the system has been modified and verified boot turned off, I wouldn't expect banking apps and other apps requiring device integrity to work. - Recompiling an already compiled build is also far less ideal than being able to build from source for stability and reliability.
• I didn't extensively test policy enforcement, and I'm not going to.
• As a proof of concept it does the job, and I'm happy with that. It isn't anything more.

Yeah, no, that's not ready..

I did see some interesting screens though:

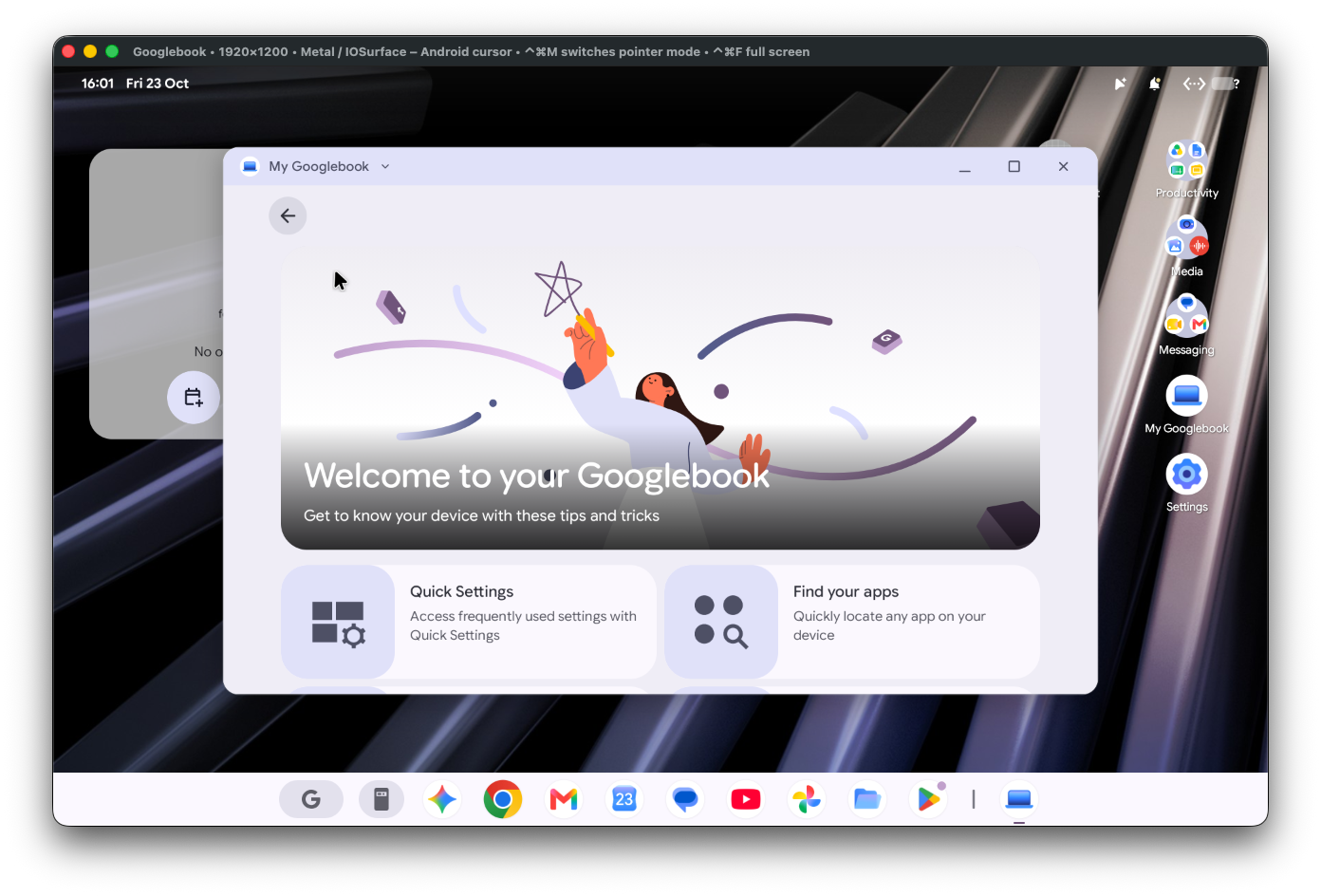

The Googlebook flow presently looks like it will offer a similar Chromebook-esque work/personal setup flow directly from the welcome screen. When tapping this it presently goes directly into work profile setup and blocks completing enrolment, which is presumably not right.. either way it fails on adding account.

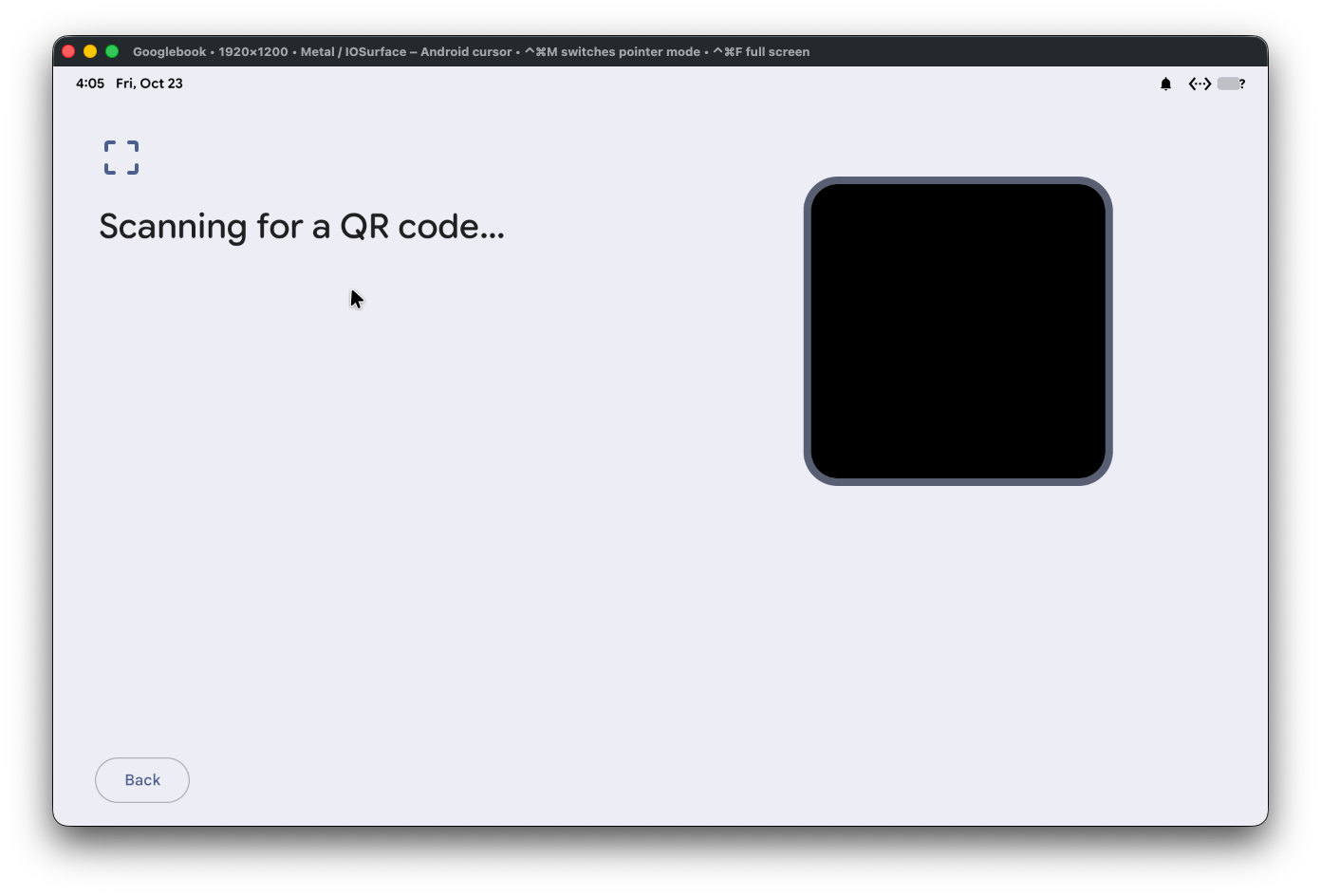

The 6-tap QR code provisioning flow is present, but without a camera in the VM it didn't let me progress.

I also tried the old trusty afw#setup which eventually also died:

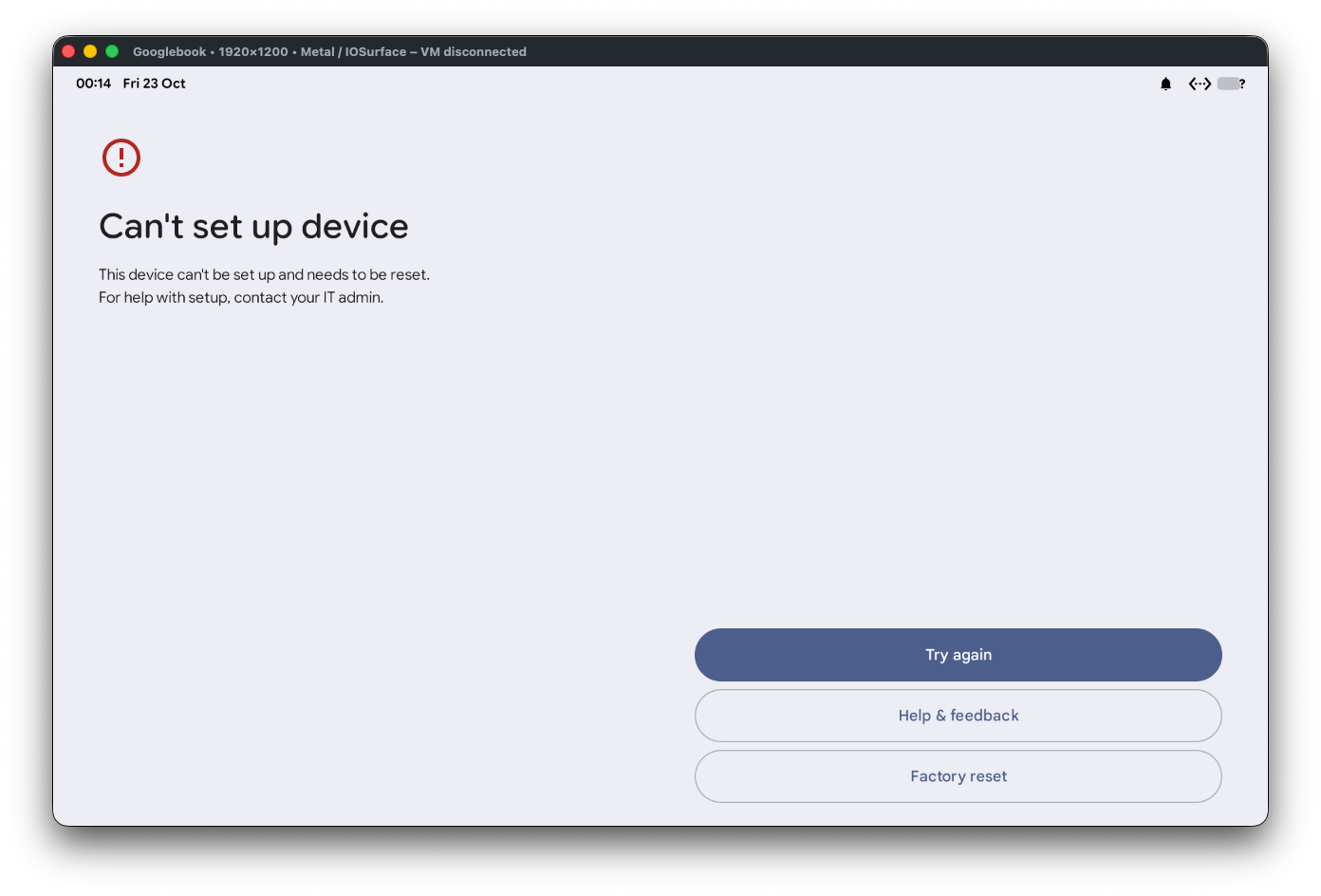

In all cases when provisioning for company-owned flows does eventually fail, the reset button crashes the GooglebookOS. So maybe someone should check on that, too..

I could test custom DPC, but given the provisioning flow is broken, it seems unnecessary today.

We can probably leave this bit disabled for a little longer.

Back in the wishlist I argued a work profile is the one thing I want most from Googlebook in enterprise. There's no specific date for work profiles yet, yet for a consumer launch it's understandable the work profile would also be the most in-demand of the enterprise use cases for Googlebook, as has been echoed across the r/Googlebook subreddit amongst other places (it's not just me asking for it!)

Having now watched a Googlebook enrol a work profile through Android Device Policy, I'm fairly confident it's much closer than previously let on. The management stack is in the OS, it enrols, and although I'm sure there's still much to do, hopefully it's not enough to keep it delayed until late next year.

I've got a work-profile tracker going with guidance on submitting feedback if you'd like to nudge Google along. If you've been poking at the same images, or want to chat about this in general, get in touch.
